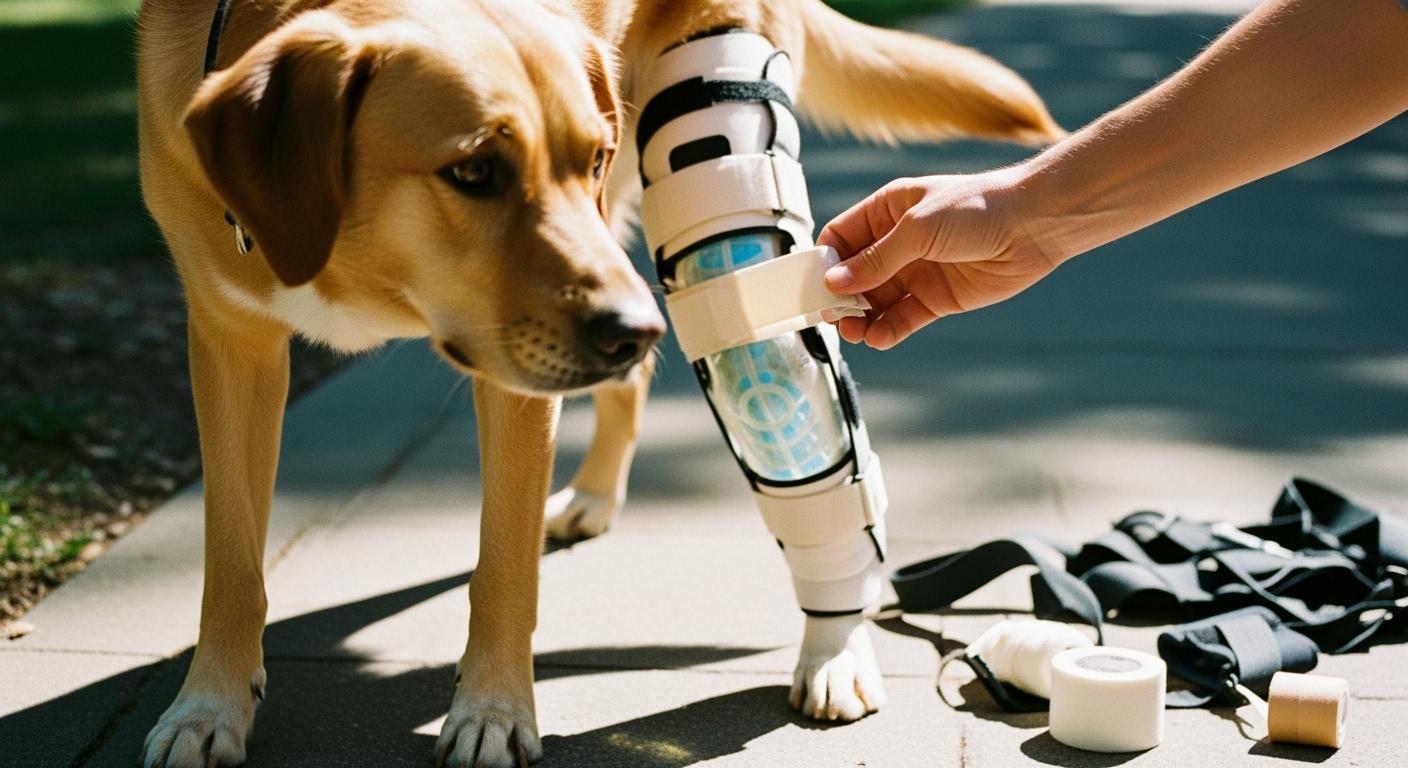

A dog knee brace gel pack can look centered before the first step and be completely off the joint by the end of the block. The brace shell stays in place. The straps have not loosened. But the gel pack inside has slid below the knee, rotated toward the inner thigh, or bunched up behind the joint — and the hot or cold contact that was supposed to reach the knee is now pressing into soft tissue above or below it.
That failure is not a tightening problem. It is a pocket design problem, and it traces to three dimensions that determine whether a gel pack stays stable during real movement: pocket depth, pack thickness, and strap path width.
Three Ways a Gel Pack Shifts — and What Each Pattern Reveals
A gel pack inside a knee brace can move three ways, and each pattern points to a different structural weakness.
Downward slide. The pack drops below the knee joint. This happens when the pocket is too shallow or the pocket opening faces downward with nothing to arrest the pack’s descent. During a stride, the dog’s leg moves forward and the brace body undergoes micro-oscillations — small rapid shifts in position with each footfall. A pack sitting in a shallow pocket rides these oscillations like a tray on a vibrating table, creeping downward millimeter by millimeter. By the end of a 10-minute walk, it has migrated far enough that the thermal contact zone no longer overlaps the joint line.
Check for this: before a walk, mark the top edge of the gel pack with a piece of tape on the outside of the brace pocket. After 10 minutes of walking, measure the distance between the tape and the pack edge. More than half an inch of drift means the pocket cannot hold the pack against the repeated impulse of a normal stride.
Inward rotation. The pack twists toward the inner thigh. This is a strap-path problem. When the upper and lower straps are tensioned unevenly — common with dogs that have tapered legs where the thigh circumference is larger than the lower leg — the brace body develops a diagonal tension line. The gel pack, sitting between these uneven anchor points, rotates to follow the path of least resistance. It is not that the pack is “slippery”; it is that the force pulling on one side of the brace shell is stronger than the force pulling on the other, and the pack rotates as the shell distorts.
Bunching behind the knee. A thick gel pack resists the angle change that occurs when a dog flexes the knee mid-stride. As the joint closes, the pack acts as a wedge between the brace shell and the leg. The shell pushes the pack forward; the leg pushes back. The pack cannot compress enough to accommodate both, so it buckles outward or bunches into the crease. A low-profile pack — one thin enough to conform rather than resist — avoids this because it bends with the joint instead of fighting it.
The causal chain is straightforward: knee flexion increases the angle between the brace’s upper and lower anchor points → a thick pack becomes a fulcrum at the point of maximum bend → the brace body’s tension converts into a shear force that pushes the pack out of plane → the pack shifts, and the thermal contact zone moves with it. This is not a strap failure. It is a geometry failure — the pack profile and the joint range of motion are mismatched.
Why Pocket Depth and Pack Profile Matter More Than Strap Tension
Tightening the straps harder does not fix a pocket that cannot hold a pack. It often makes things worse. When the brace is overtightened to compensate for pack movement, the strap pressure concentrates at the narrowest points of the leg — typically just above and below the knee — while the pocket area between them remains mechanically unchanged. The pack still shifts. But now the dog also has pressure points at the strap lines.
The mechanism that actually keeps a gel pack in place is a deep, contoured pocket with a firmer rim edge. A contoured pocket cups the pack on three sides — top, bottom, and the side facing the inner thigh — leaving only the outer face open. The rim edge, if it has enough structure, acts as a mechanical stop: the pack hits the rim and cannot slide past it. A loose sleeve-style pocket, by contrast, has no rim — just two layers of fabric stitched flat. The pack can exit in any direction.
A brace built with a contoured gel pack pocket and retention edges addresses this at the structural level rather than relying on compression alone. The pocket shape does the work that overtightened straps cannot.
| Failure sign | Likely cause | What not to do | Better design or fit response |
|---|---|---|---|
| Pack slides below knee | Shallow pocket, no bottom rim | Overtighten brace | Deeper pocket, firmer edge |
| Pack rotates inward | Uneven strap tension | Ignore rotation | Contoured pocket, wider strap path |
| Pack bunches behind knee | Pack too thick for joint angle | Force pack into crease | Low-profile pack, center placement |
| Brace twists with pack | Narrow straps | Add more straps | Wide straps, stabilize brace body |
| Dog chews at pack pocket | Pressure or discomfort | Scold dog | Recheck fit, check for pressure marks |
| Skin redness after removal | Pack shifted, concentrated pressure | Ignore redness | Adjust pack position, check skin after each session |
Wide strap paths matter because they change how force enters the brace body. A narrow strap concentrates its hold into a thin band — all the tension sits on a strip of fabric maybe half an inch wide. When the dog moves, that concentrated force creates a pivot point. The brace can rotate around it. A wide strap distributes the same tension across a broader surface area, which reduces the per-square-inch pressure and gives the brace body more surface contact to resist rotation. Brace types differ in how their strap and pocket design handles a gel pack under dynamic load, and the differences show up most clearly after 15 to 20 minutes of continuous walking — not during a static living-room fit check.
Strap tension alone does not stabilize a joint. It stabilizes the brace body relative to the leg. The gel pack inside needs its own stabilization — through pocket geometry — because the pack is a separate mass inside a moving system. When the brace decelerates at the end of each stride, the pack continues moving forward inside the pocket unless something stops it. That something has to be the pocket structure itself.
| Material Factor | Why It Matters |
|---|---|
| Stable support material | Helps the brace hold alignment during walking and rehab sessions. |
| Soft contact areas | Reduce rubbing and friction during repeated stride cycles. |
| Cleanable construction | Makes it practical to maintain a hygienic therapy routine. |
| Low-bulk pack profile | Improves wear tolerance by reducing the pack’s resistance to knee flexion. |
When a Knee Brace Gel Pack Creates More Problems Than It Solves
A gel pack knee brace is not the right solution in every scenario. Understanding where it underperforms prevents the frustration of chasing a fit that was never going to work.
Dogs with angular limb deformities or heavily tapered legs. If the leg circumference changes sharply between the thigh and the lower leg, the brace body sits on two different diameters. The straps pull at different angles to compensate, and that built-in asymmetry creates a persistent diagonal force across the pocket — exactly the condition that causes the pack to rotate inward. No amount of pocket contouring fully cancels this if the leg geometry is extreme enough. Fit checks that catch pack movement before it turns into skin damage are especially important for dogs with non-standard leg profiles.
Double-coated breeds. Visual inspection of skin after brace removal is less reliable on dogs with dense undercoats. A rub mark that would be instantly visible on a short-coated dog can hide under fur for days before the skin breaks. For these dogs, hand-checking — running fingers slowly over the skin under the brace zone, feeling for warmth, bumps, or tenderness — is the only reliable post-wear check. Visual inspection alone will miss early-stage pressure marks.
Fresh post-surgical swelling. A gel pack that shifts unpredictably is a liability when the therapeutic goal requires precise, unmoving thermal placement over a specific tissue zone. If the knee contour is changing day to day due to resolving swelling, a pocket that fit yesterday may not hold the pack today. Cold therapy in particular demands stable contact — a pack that drifts off the target area during a 15-minute session provides no benefit and risks cooling tissue that should not be cooled.
Slipping and rotation are not just comfort complaints — they are signals that the force distribution inside the brace has changed. A pack that has rotated is pressing on structures it was not designed to press on. Gel pack placement changes how force distributes across the joint during a stride, and a misplaced pack redirects that force into areas that may already be compromised.
Disclaimer: The pocket stability checks described here assume a short-coated dog where visual inspection catches rub marks reliably. Double-coated breeds may show subtler pressure signs that need hand-checking rather than visual inspection. If the dog’s leg conformation falls well outside the breed norms this brace was patterned for — particularly dogs with angular limb deformities or very deep chests that alter stance geometry — the fit checks described may not catch every pressure point. Discontinue use and consult a veterinarian if limping, swelling, or skin changes appear.
| Signal level | What you see | Action |
|---|---|---|
| Green | Pack stays flat, dog walks with a normal gait, no skin change | Continue supervised use |
| Yellow | Light pack movement, mild strap mark, dog notices the brace | Recheck fit, shorten session |
| Red | Limping, pain response, swelling, skin heat, cold-looking toes, repeated chewing, pack pressing into the knee crease | Stop use, contact a veterinarian |
A stable gel pack system depends on three things working together: a pocket that cups the pack on multiple sides, a pack thin enough to bend with the joint rather than resist it, and strap paths wide enough to keep the brace body from rotating around its own anchors. Knee brace stability depends on how the pocket, straps, and brace body work together as a single system — isolate any one element and the others cannot compensate.
Overtightening straps, ignoring rotation, or forcing a thick pack into the knee crease does not fix a pocket design problem. It adds a pressure problem on top of a stability problem. The pack shifts anyway — just now the dog is also uncomfortable. That fails fast.
FAQ
Why does the gel pack in a dog knee brace shift during walks?
The pack shifts because the pocket is too shallow or lacks a structured rim edge to arrest downward movement, the straps create uneven tension that pulls the pack diagonally, or the pack itself is thick enough to resist knee flexion — turning the joint’s natural bend into a wedge force that pushes the pack out of position. Most shifting involves a combination of these three factors rather than a single cause.
Does tightening the brace straps stop the gel pack from moving?
Tightening alone rarely stops pack movement because the straps control the brace body’s position on the leg, not the pack’s position inside the pocket. A pack in a shallow sleeve-style pocket will continue to migrate under the impulse of each stride regardless of how tight the outer shell is. Overtightening often creates pressure points at the strap lines while the pack continues to shift.
What design features actually keep a gel pack stable?
A contoured pocket with a firmer rim edge that cups the pack on three sides. A low-profile pack thin enough to flex with the knee rather than resist the joint angle change. Wide strap paths that distribute tension across enough surface area to prevent the brace body from rotating around its anchor points. A removable pack design that allows the pack to be cleaned, inspected, and positioned independently before the brace is fastened.
What should I check after each session to know if the pack is causing problems?
Two checks: first, mark the pack position with tape before the walk and measure any drift after — more than half an inch signals a pocket design issue. Second, after removing the brace, press a dry paper towel against the pocket lining to check for trapped moisture, and hand-check the skin under the brace zone for warmth, bumps, or tenderness. Dampness behind the pack or skin that feels hotter than surrounding areas are early warnings that the pack is not sitting correctly during wear.
